ROTATING ACCUMULATION TABLE

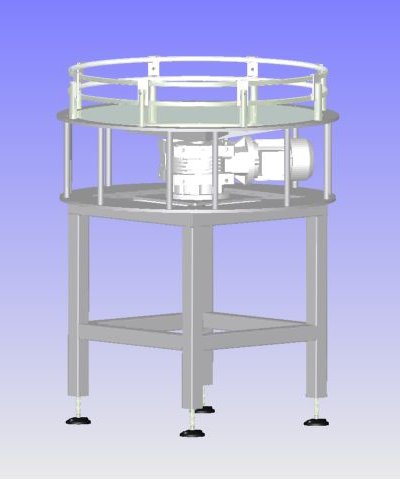

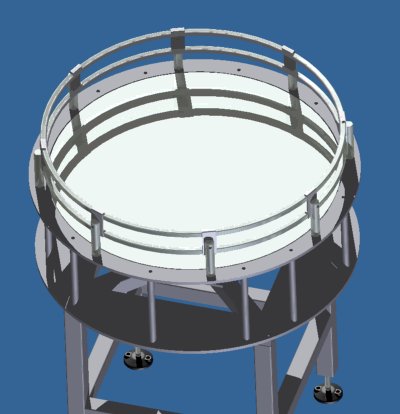

The rotating accumulation tables can be inserted both inside a conveyor section to allow accumulation at the beginning or at the end of the line. Inserted at the beginning of the conveyor allow to give autonomy to feeding of a line. The load can be either manual or automatic. Inserted at the end of the line, they allow autonomy for unloading by an operator. The accumulable products are circular section bottles or similar products. The figure shows an example of an accumulation table.

Download the pdf catalog of rotating accumulation tables

Essential features:

• Disc diameter from 800 to 2000mm.
• Thrust deflectors push the product outside or inside.
• AISI304 stainless steel disc.
• Worm gear motor with pre-stage.
• Conveyor structure in painted or galvanized steel, stainless steel
• Integrated electrical panel with inverter for speed adjustment
