homepage / sheet loader-feeder / sheet holder

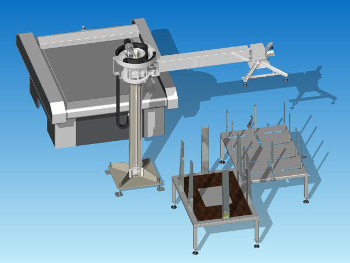

In order to realize automated cells with column sheet loaders, we can supply 2 models of supports for the sheets to be processed or processed. For the MC series sheet feeder we provide a type of dedicated support.
The types of sheet holder we produce are:
Scarica il catalogo pdf supporti per mettifoglio

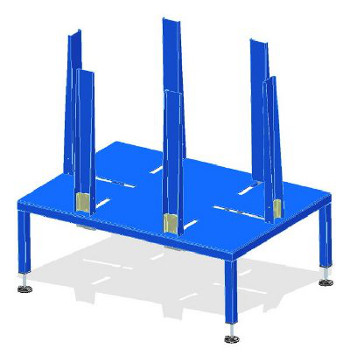

This product is used with column sheet loaders. The adjustable supports (photo opposite), are produced in two sizes:
This simple and economical product has 6 guides 800mm high to hold the processed sheets and to work. The adjustment is made by simply loosening the locking screws and manually shifting the position of the single guide.
This product is used with column sheet loaders. The self-centering supports (photo opposite), are produced in two sizes:
This simple and economical product has 6 guides 800mm high to hold the processed sheets and to work. The adjustment is made through 2 cranks. One crank handle adjusts the width and the other the length: by turning the cranks the side guides widen or tighten, remaining parallel and equidistant from the center line of the machine. The two cranks handle have a position indicator that shows the distance between the guides.

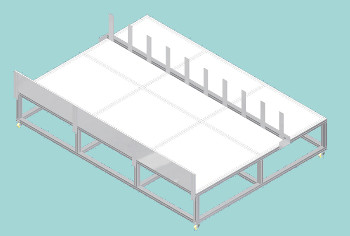

The supports for sheet loader MC (photo opposite), are produced in two sizes:
This simple and economical product is a support table for the sheets to be cut, resting on the ground with swivel wheels. The long side to be attached to the plotter has an adjustable edge vertically, for supporting the stacks of sheets. The support surface of the sheets has a longitudinally adjustable ledge for containing the stack of sheets.
